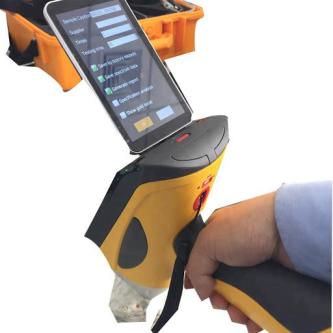

Handheld Portable XRF Analyzer, Karachi Pakistan

Handheld XRF Mineral, Precision Metals and Alloy Analyzer (All in One)

Parameters

Analytical Method: Energy dispersive X ray fluorescence analytical Method

Elements Measuring Range: Atomic number from 12 to 92 [elements from magnesium (Mg) to uranium (U)] can be measured

Simultaneous detector elements: Simultaneous analyze 40 elements

Microcomputer system: Customized system; : 1G ; System memory: 1G ; extended stored maximum support 32 ; standard 4 for mass storage data

The content range: ppm ~ 99.99%

The detection time: (one second report results)

A built-in system: GPS, WIFI, Bluetooth

Power Supply: Rechargeable lithium battery, standard is 9000mAh, sustainable work up to 12

hours; optional is 27000mAh super battery with wide voltage 110 ~ 220 universal adapter for recharging power supply

Detection Objective: Solid, liquid, powder

Detector SDD detector or Fast- detector (optional)

Detector resolution: Minimum reach 128eV

The excitation source: 500KV/2OOuA, silver target end window integrated miniature X-ray tube and high voltage power supply

Collimator and filter: collimator diameters are 4.0mm and 2.0mm, 6 kinds of filters with automatic switching functions

Video system: 500W Pixel high resolution camera

Display Screen: Brand new inch semi-reflecting and semi-transmitting LCD touch screen, resolution 1080*720

Detection limit: The minimum detection limits at ~ 500 ppm

Safety: Multiple safety protection, no tests, no radiation, radiation levels at work are far below the international safety standards, and has no sample telemetry, automatic -turn -off X-Ray tube function. Standard radiation shields, thickened instrument alloy testing wally test instrument

Specialty: Special edition of ore’ analytical software, and intellectualized one- key- testing.

Convenience of Application: No need to select curves, curves, intellectualized one- key-selecting will select, the best matching curve.

Operating ambient humidity <90%

Operating environmental temperature -20 C~+ 50°C

Instrument dimension : 244mm ( Length) x 90mm Width) x mm Height)

Instrument weight 1.7Kg

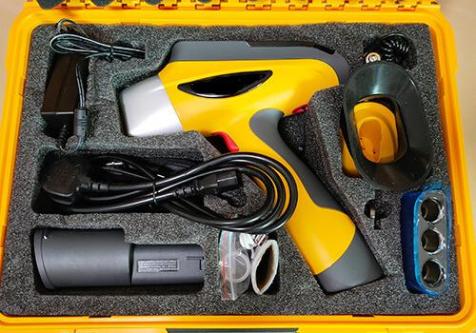

Accessories: Three-military-protection-box is compression, waterproof and absorption. Universal charger and car charger, 4G memory card and card reader, Two lithium battery and charger, PDA accessories, radiation shield.
